FIRE PUMP PH – BETA 10-1000

  • New

Cat. No.: vv 520

Manufacturer: Pavliš a Hartmann

FIRE PUMP PH – BETA 10-1000

Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

FIRE PUMP PH – BETA 10-1000

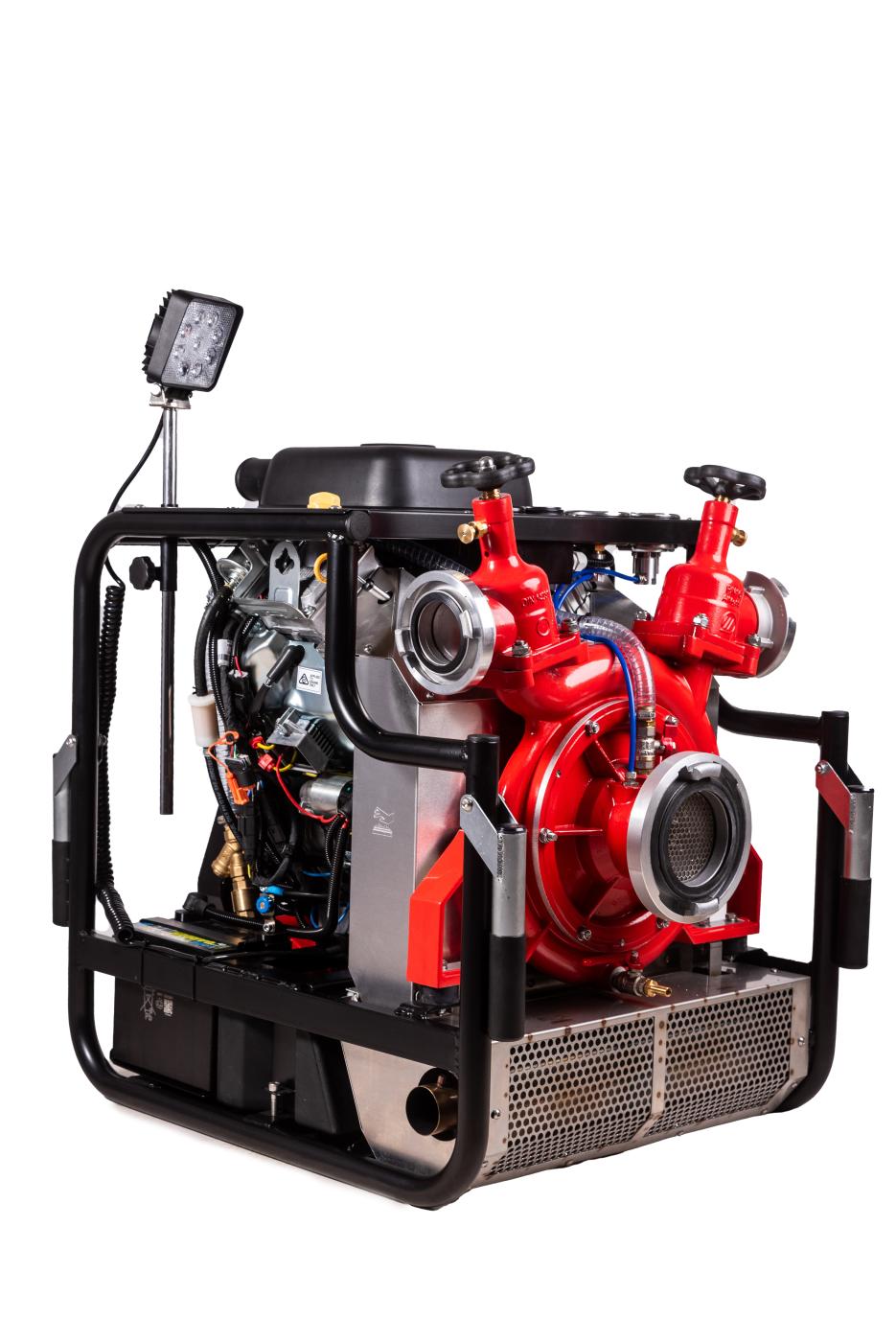

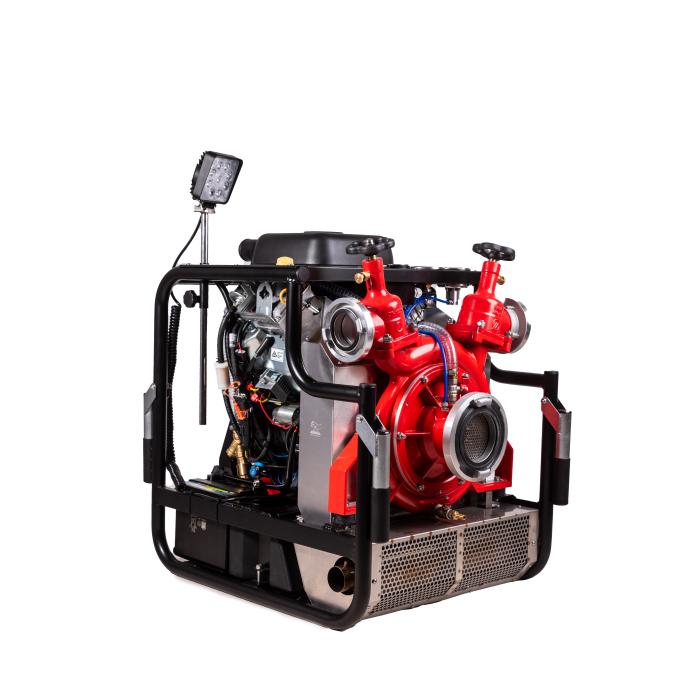

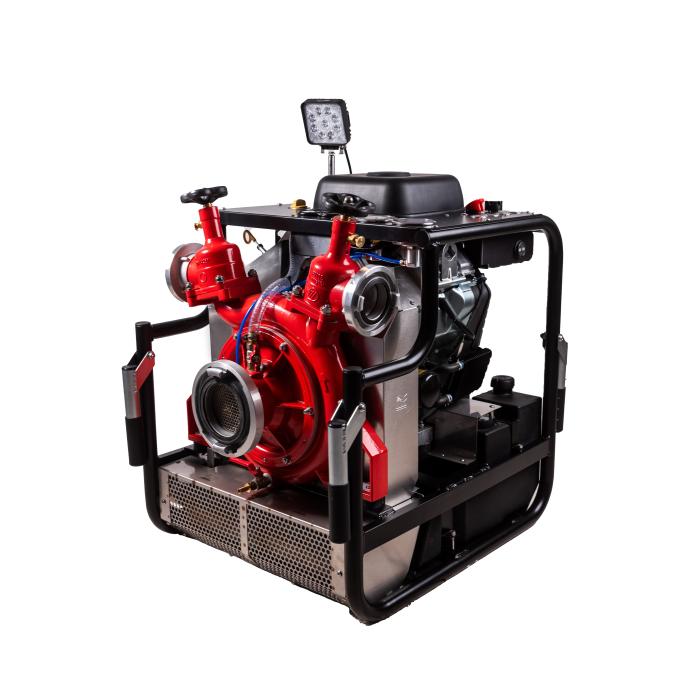

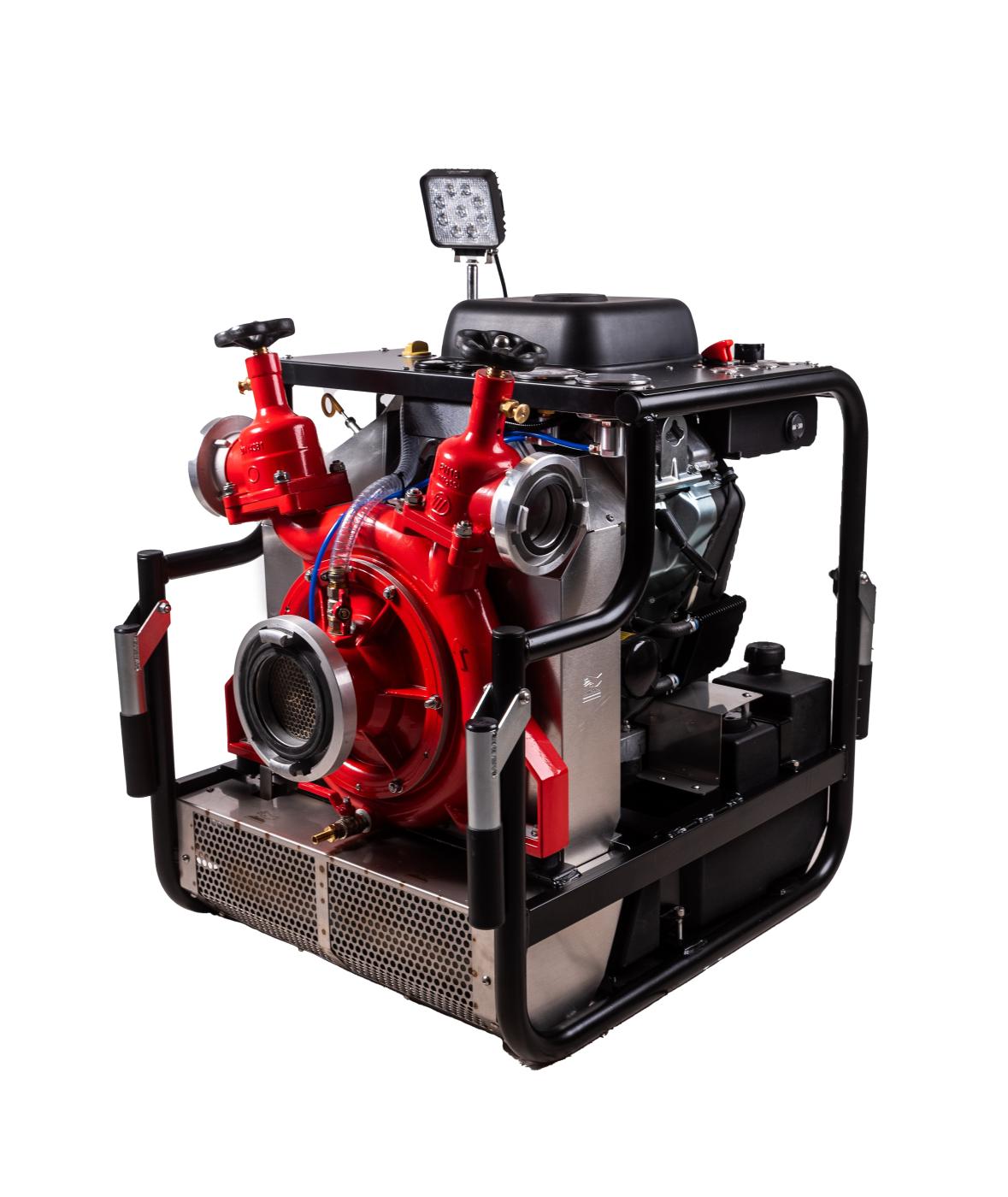

The PH – BETA fire pump

Has been developed in close collaboration with our research and development department, leading Czech technical universities, and industry specialists.

This innovative approach ensures that the pump is the ideal choice for both professional and volunteer firefighters looking for reliable and effective equipment for their operations. Additionally, the pump is certified by the European accredited testing laboratory TÚPO, ensuring its compliance with high safety and performance standards.

Key Features

  • Automatic Vaccuum Pump: Advanced technology allows for both automatic and manual control for maximum flexibility. The pump can draw water from a depth of 8m in less than 30 seconds.
  • Large Built-in Tank: Provides continuous operation at full capacity for approximately 72 minutes, making it ideal for prolonged interventions.
  • Compact Design and Low Weight: Designed for easy handling and transportation, allowing for quick and efficient deployment in various situations.

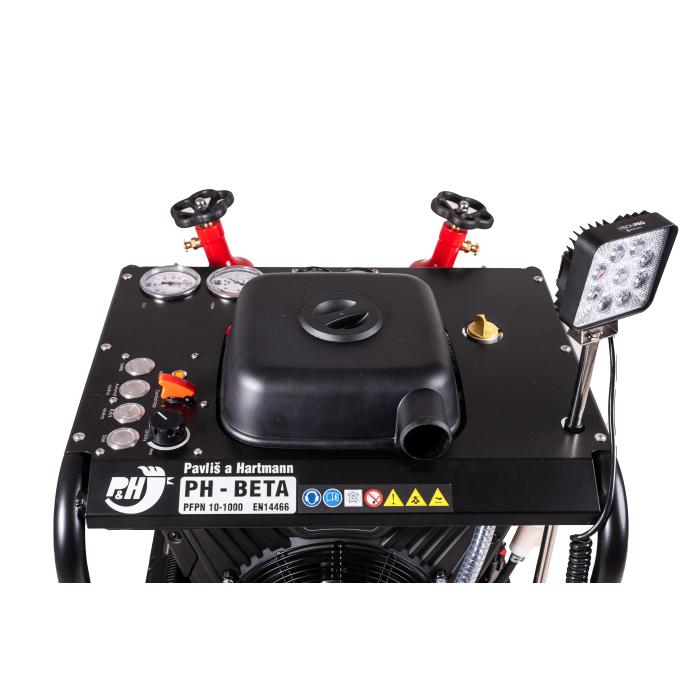

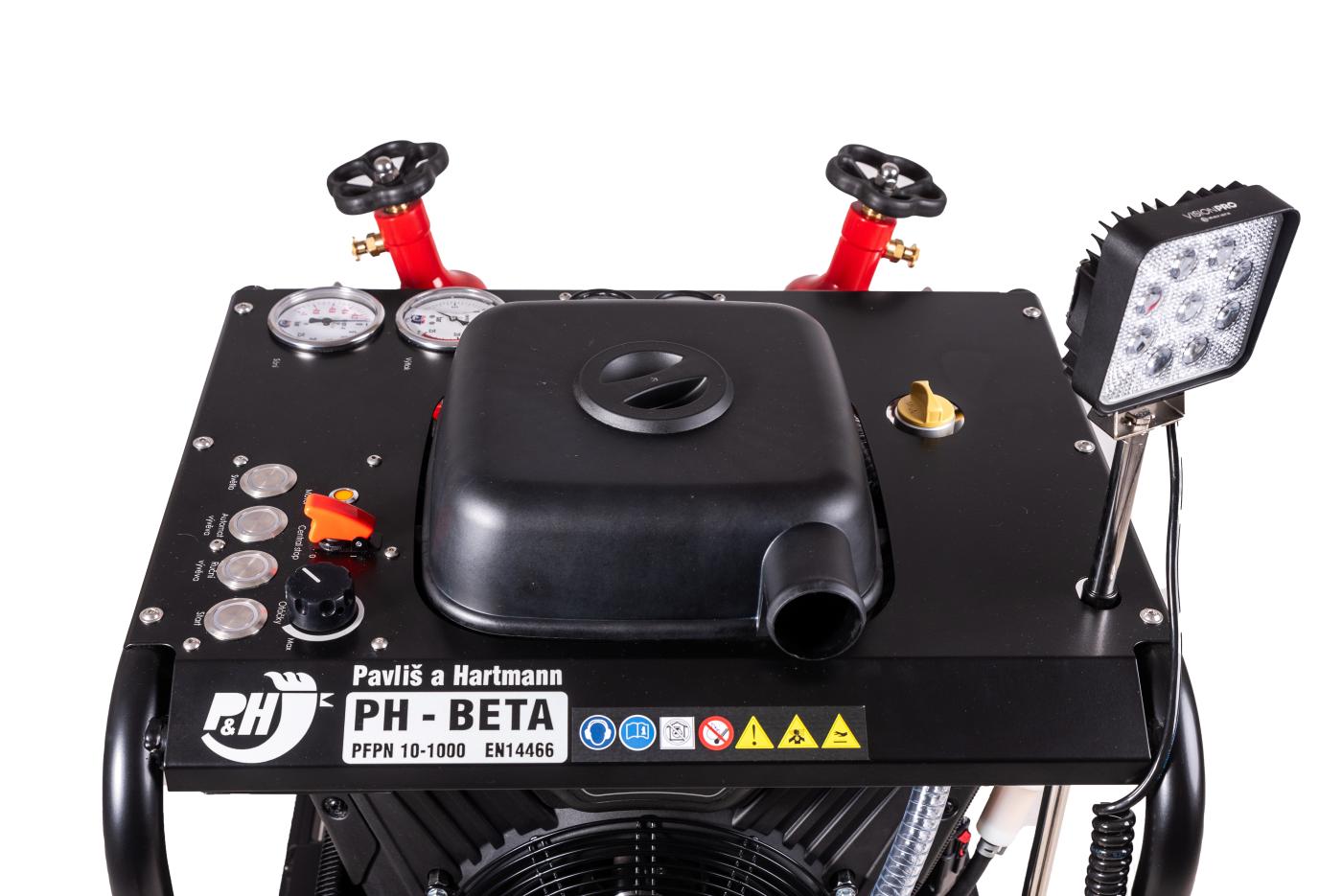

  • Telescope LED Light: Ensures optimal lighting during night operations or in poorly lit conditions.

Technical Specifications

  •  Engine: Briggs & Stratton 40HP (30,2 kW) EFI - with electronic fuel injection. Professional engine with three-year warranty and available worldwide service.

Technical parameters

Device dimensions (L x W x H) 782 x 615 x 775 mm
Dry weight of PH Beta syringe 132,7 kg
Total weight of syringe PH Alfa BS 144,5 kg
Intake opening A110
2 discharge openings B75

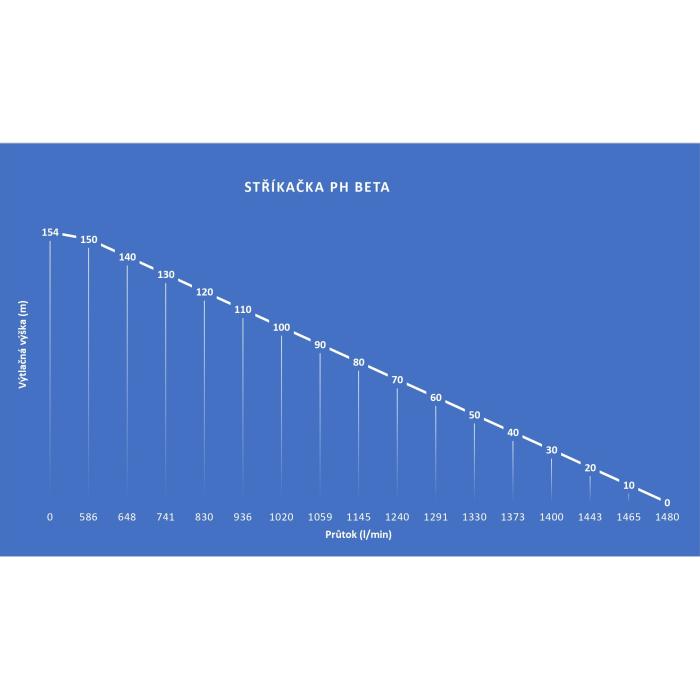

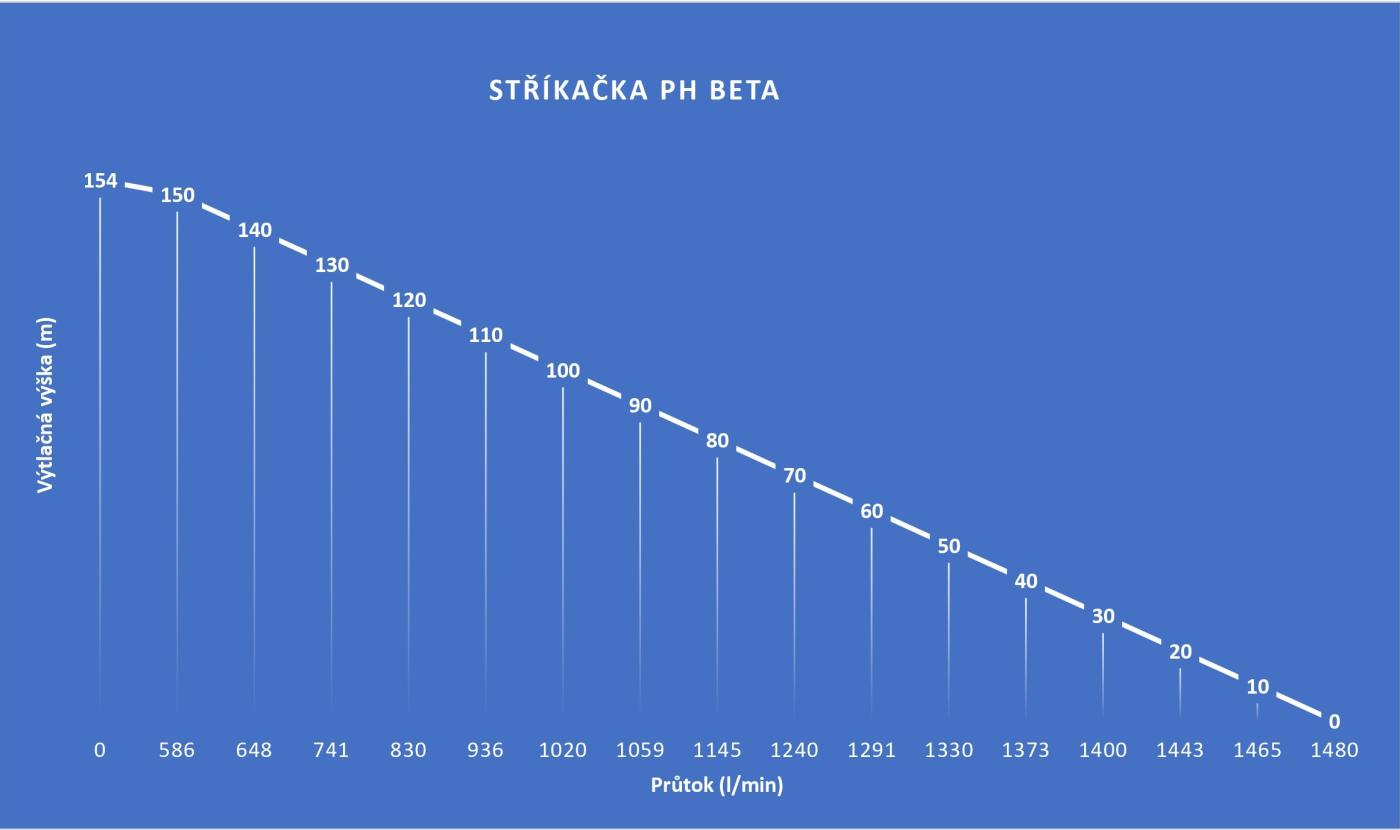

Flow 100 m= 1030 l/min
Max. discharge height 150 m
Max. suction sponge 8 m
Max. supplied water quantity 1432 l/min
Fuel petrol BA 95
Volume of built-in tank type 17 litres
Average consumption 14 litres/hour
Acoustic performance (6 bar) 101,4 dB
Limit pressure 15,5 bar

Protection against unsafe contact and water ingress IP 23

pump output at suction height of 3 m 1291 l/min at 6 BAR
pump output at suction height of 3 m 1020 l/min at 10 BAR



Applications and Benefits

  • Wide Range of Uses: Ideal for all types of firefighting units and various operational conditions.
  • Reliability and Safety: Developed with a focus on the highest safety standards and user-friendliness. Certified by the European accredited testing laboratory TÚPO for quality assurance.
  • Ease of Maintenance: Designed to meet the highest safety standards and ensure simple maintenance.
